Cylinder quarter turn, right hand version with 2 keys, Brass and zinc die chrome-plated
Cylinder quarter turn, right hand version with 2 keys, Brass and zinc die chrome-plated
Swinghandle "short" with RC2 for iLOQ profile half cylinder, Zinc die grey powder-coated RAL 7038
Swinghandle "short" with RC2 for iLOQ profile half cylinder, Zinc die grey powder-coated RAL 7038

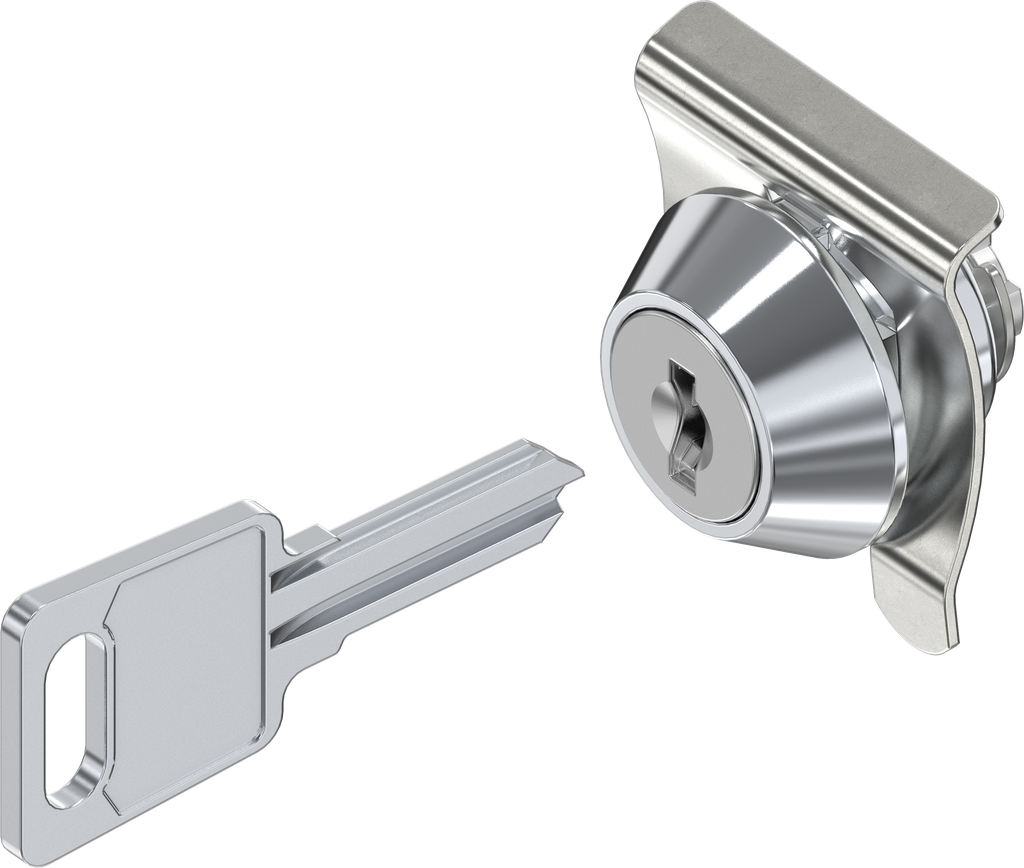

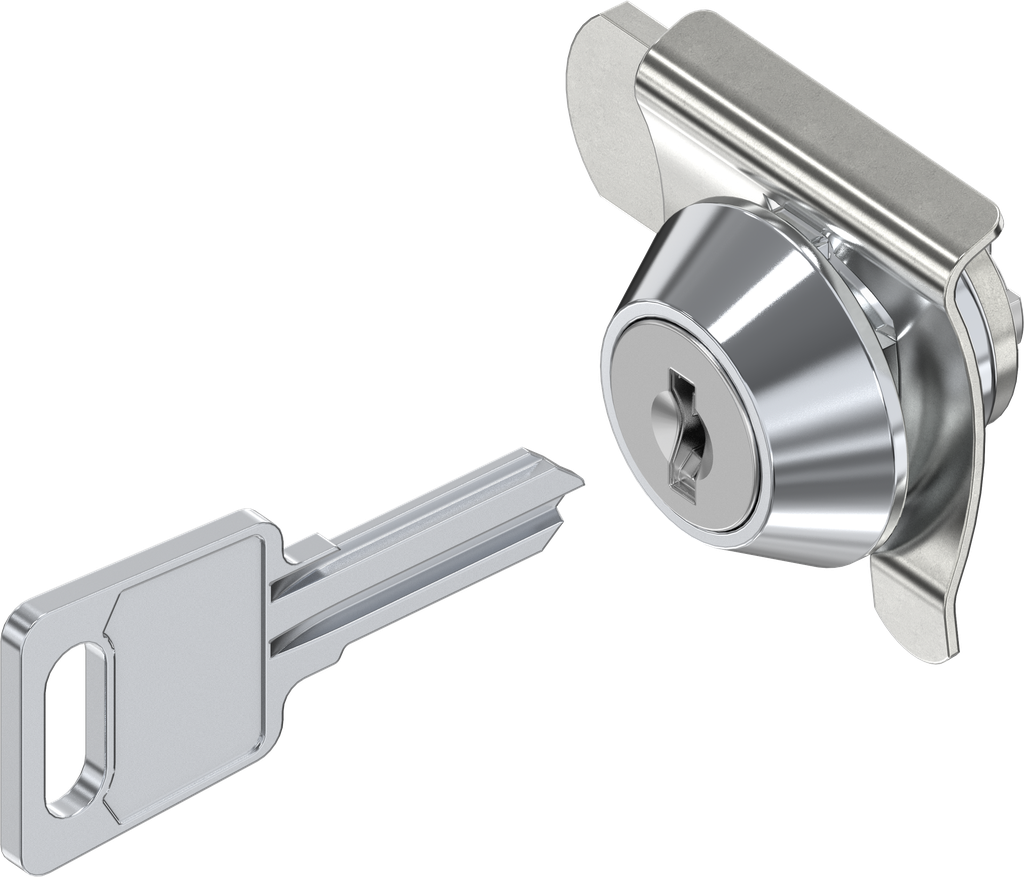

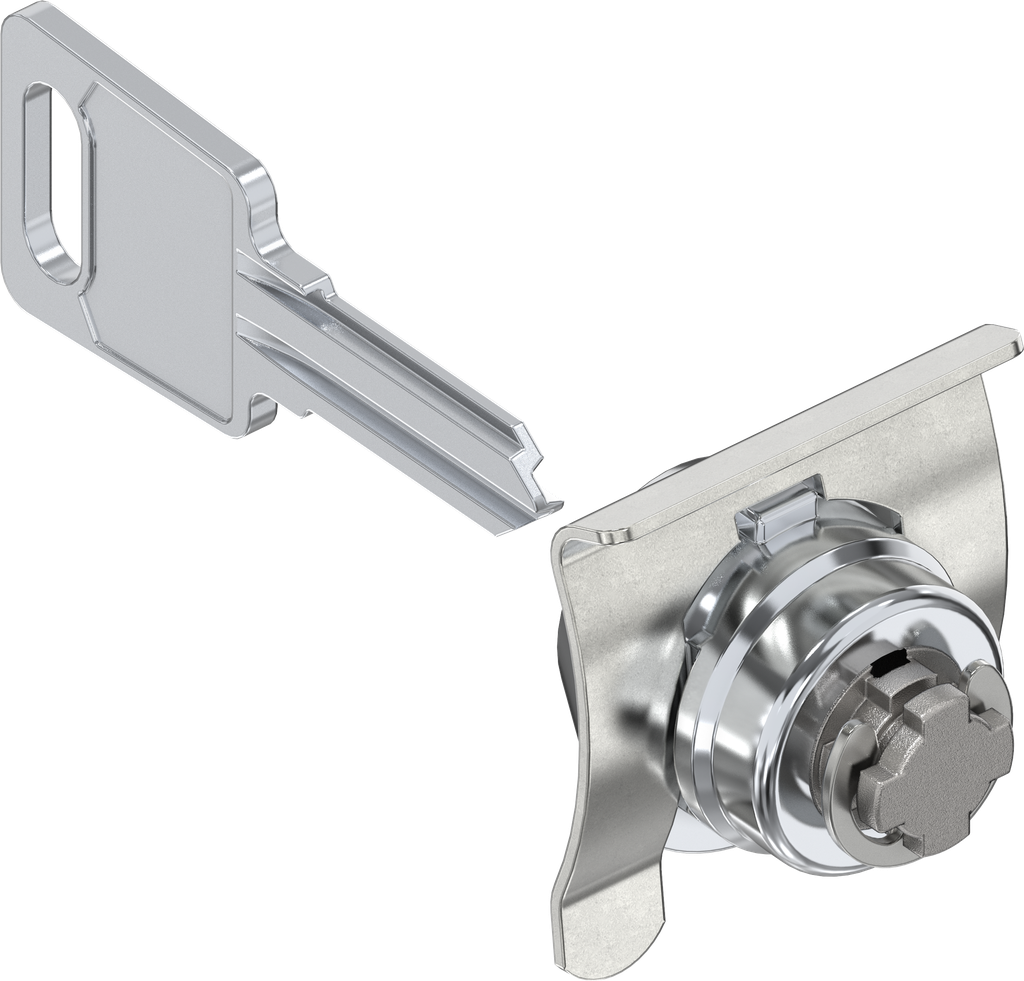

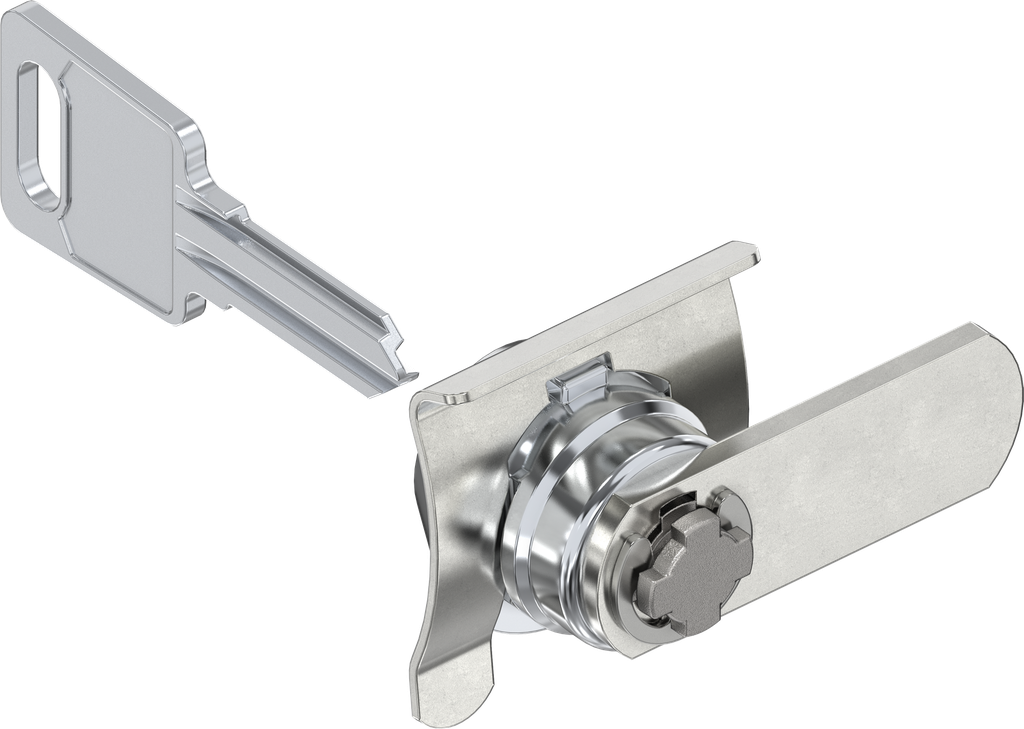

Cylinder quarter turn, right hand version with 2 keys, Zinc die chrome-plated; 7192-A197B-02

https://www.emka.com/products/7192-a197b-02 https://www.emka.com/web/image/product.template/357384/image_1920?unique=8460074

with spring fixing

    This combination does not exist.

    Inside the sealing Right
    Internal Reference: 7192-A197B-02
    Barcode: 7192-A0197B-0000002
    Product Type: Quarter turn
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 22 x 7 mm
    GH Mass: 9.50 mm
    Locking set: Round cylinder
    Door Version : Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    No Matching Products
