Lifthandle for small bending area, Polyamide GF light grey
Lifthandle for padlock for small bending area, Polyamide GF black

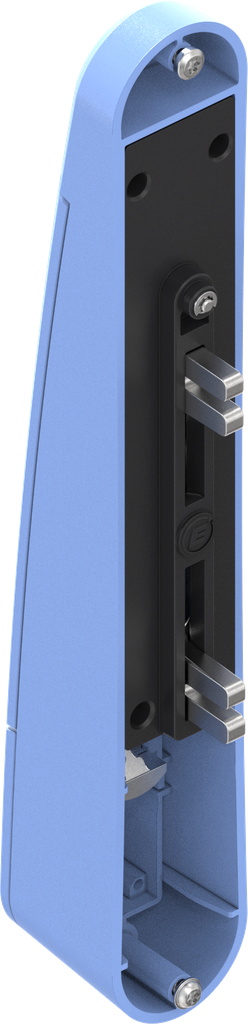

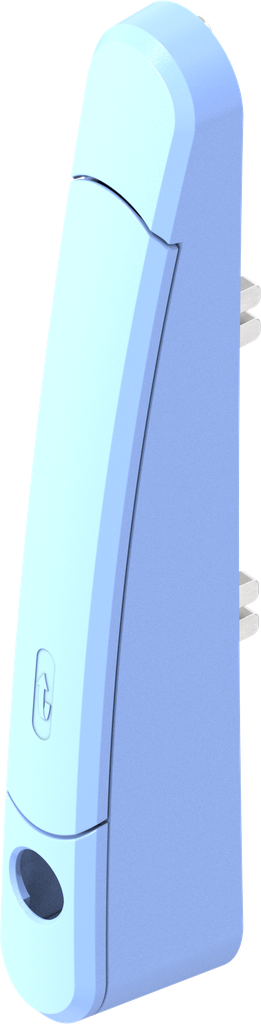

Lifthandle for small bending area, Polyamide GF light blue; 1390-U1-DP
for locking sets with profile half cylinder, round cylinder and inserts
No stock item, please ask for availability
Product Benefits:
Bi-directional lifthandle variable positioning of the rods depending on hinge fixing small cut out due to outside handle mechanism innovative new and well-priced technology attractive design larger clearance due to narrow bending 33 x 25 mm or 37 x 25 mm PatentedProduct information:

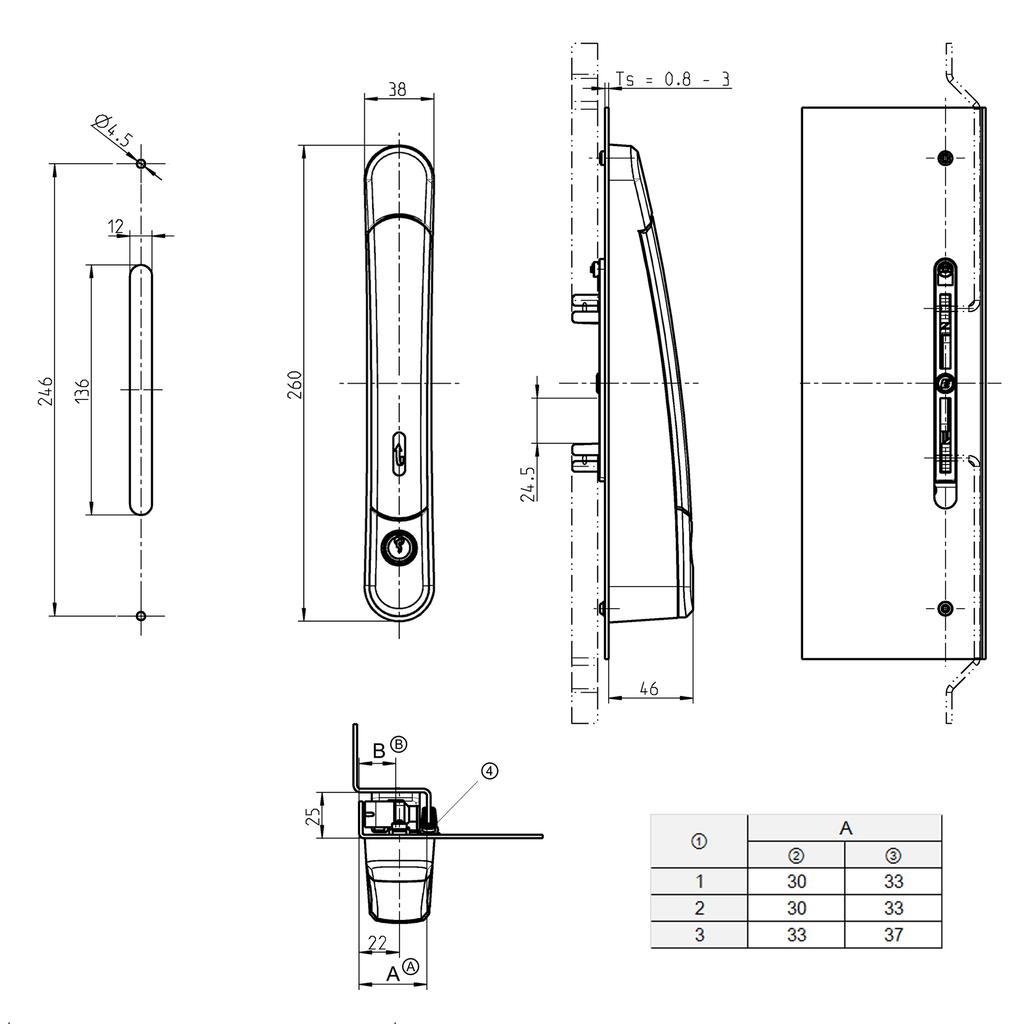

Rod movement is bi-directional Ⓐ = The values in the table for dimension A with seal refer to the seal 1011-10. The values for dimension A are different for other seals. Ⓑ = Dimension B should have the same value as the fixing dimension of the hinge bracket if the door is to be used right or left. Dimension B depends on the hinge to be used. ① = Locking type ② = Without seal ③ = With seal ④ = Seal example: 1011-10 ⑤ = Seal and seal piece with "bulge" are not used for this assembly ⑥ = Variable rod controlAssembly instruction:
Attention: Locking set for ASSA cylinder, KABA cylinder and push button cannot be installed!
Internal Reference:
1390-U1-DP
Barcode:
1390-U00001-00000DP
Product Type:
Swinghandle, Lifthandle
Program:
1390
Material of the module :
Polyamide GF
Surface of the module:
light blue
Dimension A, Variable:
25 mm
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Outside the sealing
For small bending area:
Yes
Handle Art(1):
Lifthandle
With integrated rod control / 3-point cam:
Yes
Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
3 mm
Locking set modular technology:
Profile half cylinder with cap, A = 30, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish
Swivel Handle:
46 mm
Pan Handle Length:
260 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Integrated rod control
