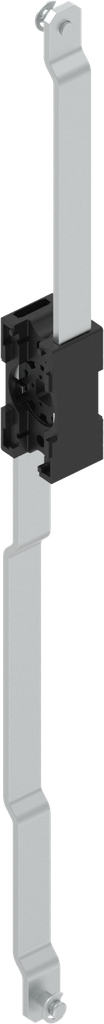

Rod control for round rods, Polyamide black and aluminium; 1121-U39-C

https://www.emka.com/products/1121-u39-c-rod-control-for-round-rods-polyamide-black-and-aluminium-224373 https://www.emka.com/web/image/product.template/224373/image_1920?unique=da0cd63

    This combination does not exist.

    Inside the sealing Left Right

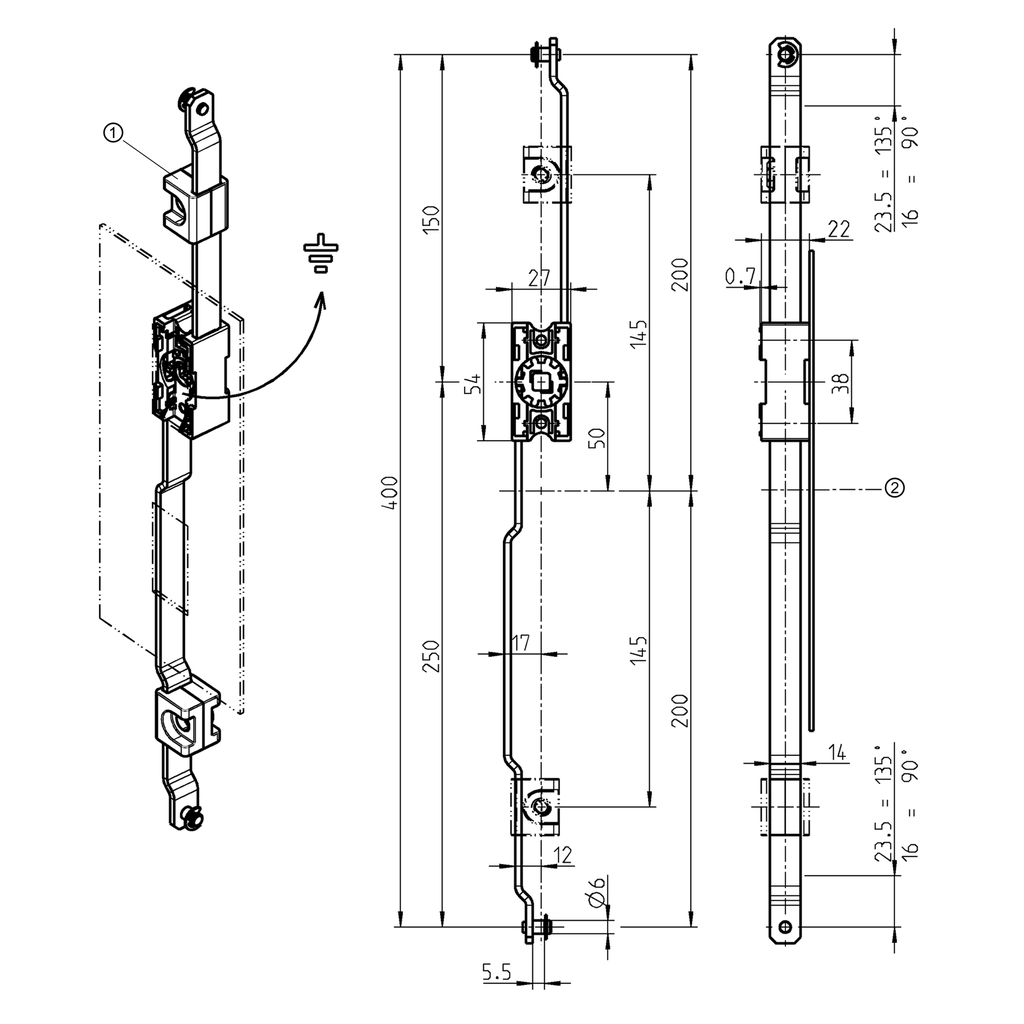

    Product information:

    ① = Rod guide for flat rod (not in scope of delivery) ② = Center door

    Function:

    Turn 135° = Stroke 23.5 mm Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U39-C
    Barcode: 1121-U00039-000000C
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-140
    Material of the module : Polyamide black and aluminium
    Rod: Round rod
    Connection rod mount: Rivet Ø 6 with circlip
    Article with property rights: Yes
    Mounting Positions : Inside the sealing
    Grounding device possible: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam

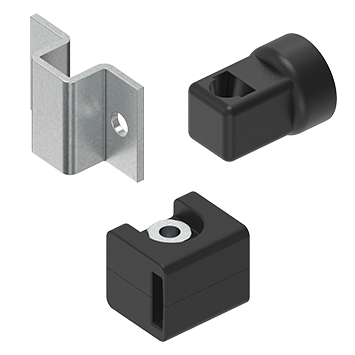

    Rod guide
    Rod
    Rod control accessories
    Adapter
    Escutcheon
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
