Reinforcement plate, Steel zinc-plated
Reinforcement plate, Steel zinc-plated
180° Hinge, Steel zinc-plated and passivated black
180° Hinge, Steel zinc-plated and passivated black

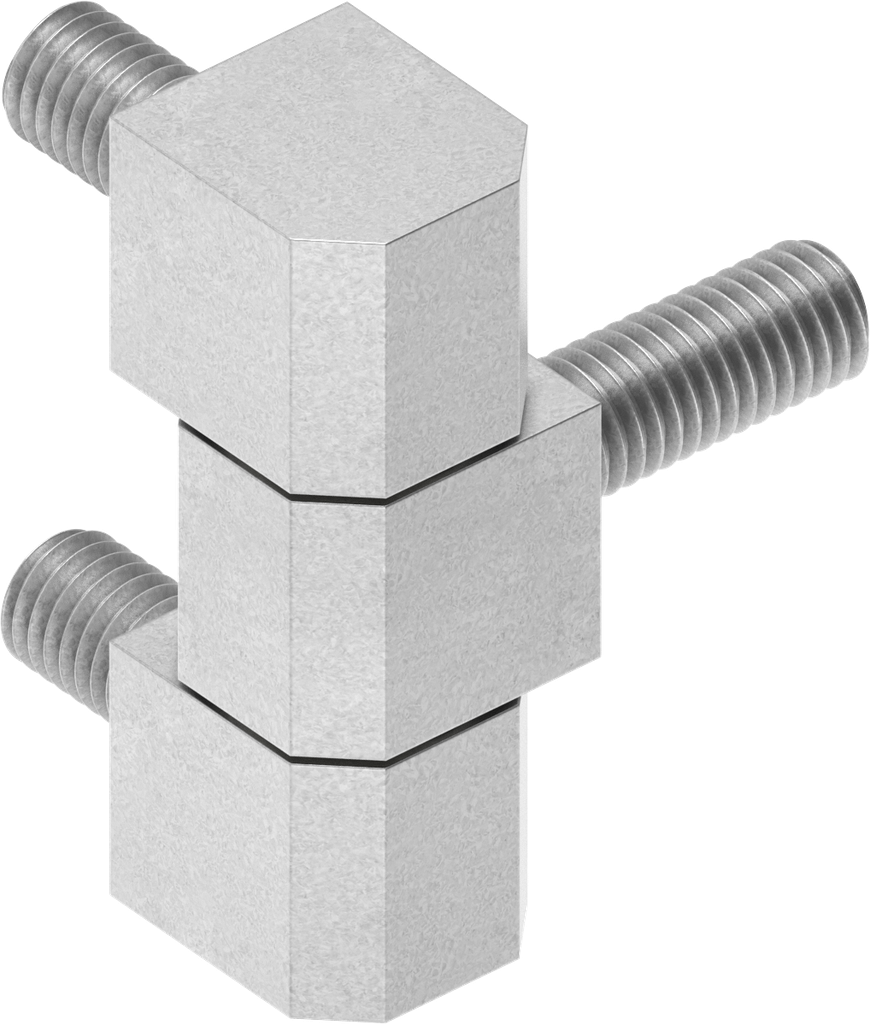

180° Hinge, Steel zinc-plated; 1039-U12-S

https://www.emka.com/products/1039-u12-s-180-hinge-steel-zinc-plated-210826 https://www.emka.com/web/image/product.template/210826/image_1920?unique=c1c335a

without nuts and serrated washers

    This combination does not exist.

    Single cabinets Left Right
    Internal Reference: 1039-U12-S
    Barcode: 1039-U00012-000000S
    Product Type: Hinge
    Program: 8031
    Material of the module : Steel
    Surface of the module: zinc-plated
    Door return variable: Yes
    Execution: three-piece
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
