180° Hinge, Steel zinc-plated
180° Hinge, Steel zinc-plated
180° Hinge, Stainless steel AISI 316
180° Hinge, Stainless steel AISI 316

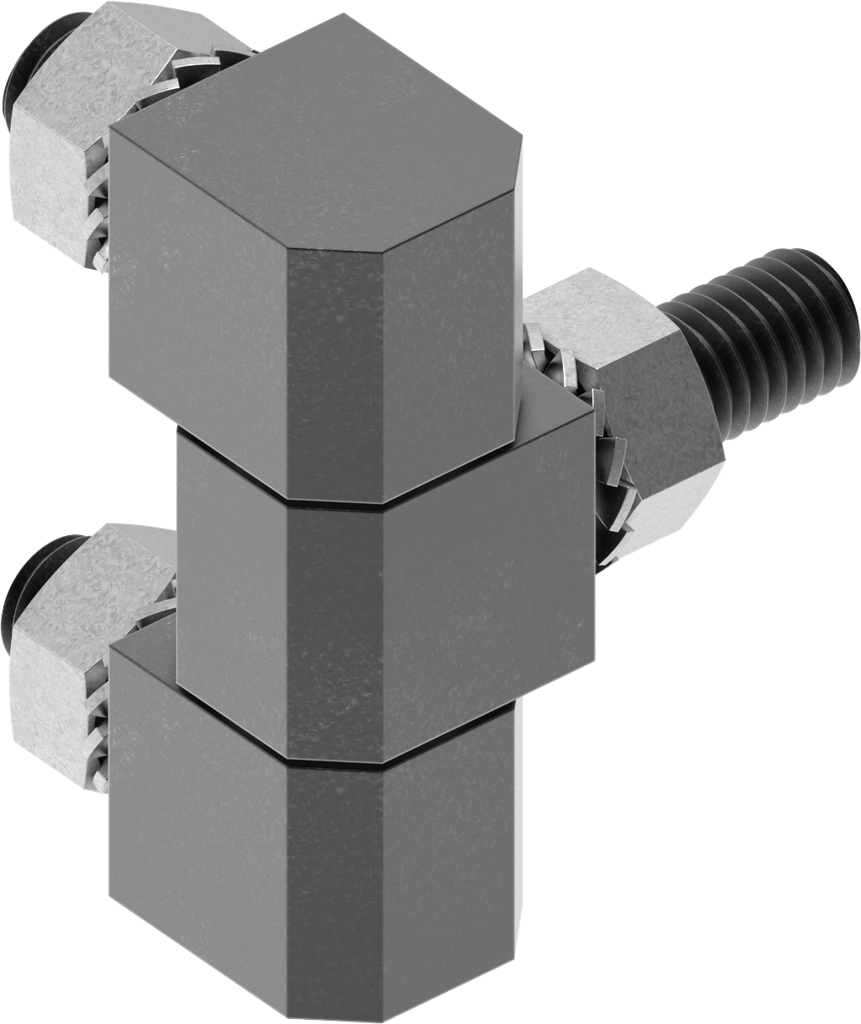

180° Hinge, Steel zinc-plated and passivated black; 1039-U12-LE

https://www.emka.com/products/1039-u12-le-180-hinge-steel-zinc-plated-and-passivated-black-210827 https://www.emka.com/web/image/product.template/210827/image_1920?unique=85c40cb

    This combination does not exist.

    Single cabinets Left Right
    No stock item, please ask for availability
    Internal Reference: 1039-U12-LE
    Barcode: 1039-U00012-00000LE
    Product Type: Hinge
    Program: 1039
    Material of the module : Steel
    Surface of the module: zinc-plated and passivated black
    Door return variable: Yes
    Execution: three-piece
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
