Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black

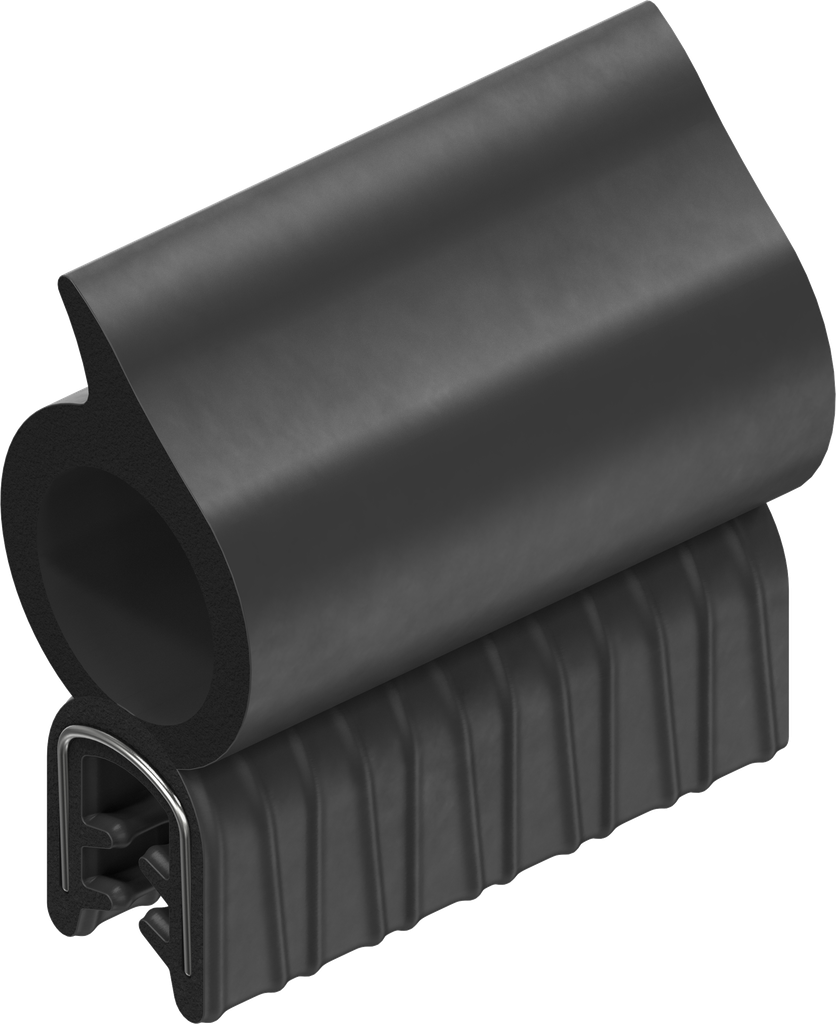

Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black; 1011-HP86-FR01

https://www.emka.com/products/1011-hp86-fr01-sealing-profile-made-of-fire-protection-material-self-clamping-foam-rubber-epdm-clamping-profile-epdm-60-5-shore-a-black-207594 https://www.emka.com/web/image/product.template/207594/image_1920?unique=41327e4

    This combination does not exist.

    Internal Reference: 1011-HP86-FR01
    Standards: DIN EN 45545-2 HL3 (fire protection)
    Barcode: 1011-HP0086-000FR01
    Product Type: Seal
    Material: Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A
    Program: 1011
    Surface: black
    Special industrial requirements: Fire protection standard
    Seal element: Sealing lip, top,Sealing balloon, top
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core

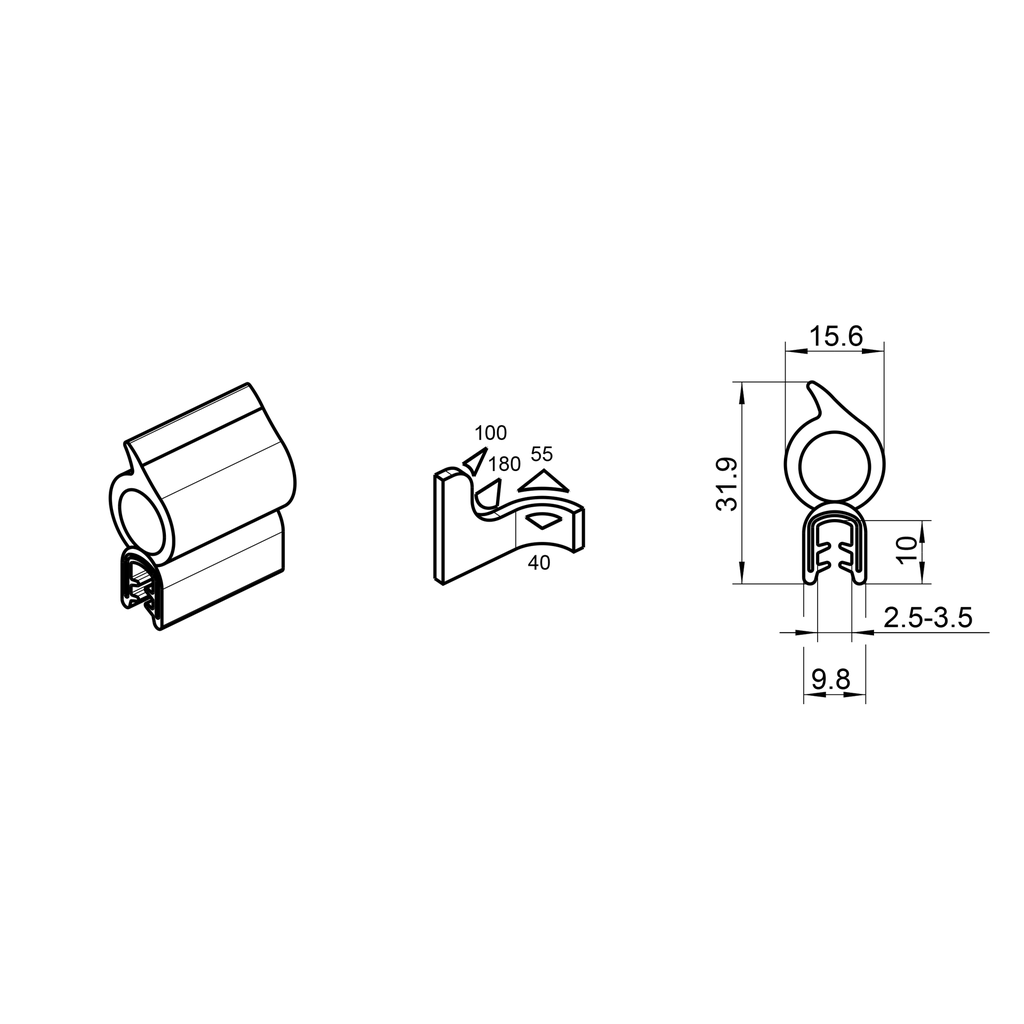

    Clamping edge is or is up to: 3.5
    Terminal Edge Of: 2.5
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
