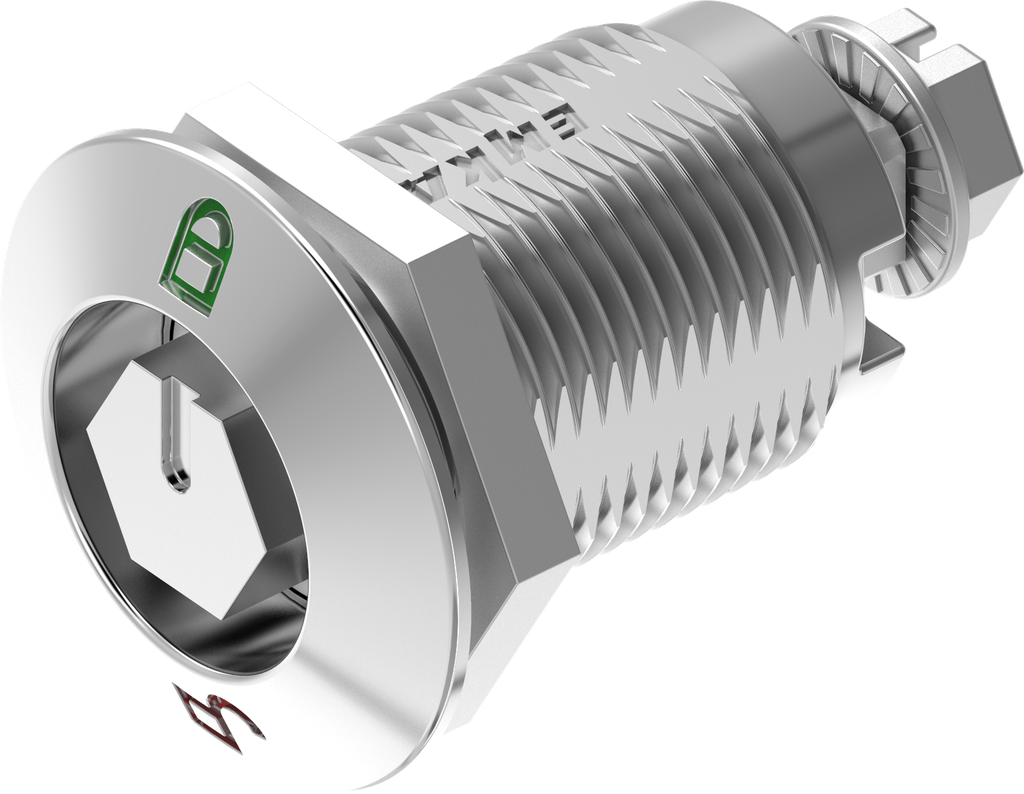

Compression latch hexagon male SW 11 with red-green marking, Stainless steel AISI 316 polished
Compression latch hexagon male SW 11 with red-green marking, Stainless steel AISI 316 highly polished
Compression latch hexagon male SW 11 with red-green marking, Stainless steel AISI 316 highly polished; 1000-U891-01LIPH
with stainless steel nut
Product information:
The compression latch is designed to be vibration-proof as such.Depending on the installation location and operational conditions specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U891-01LIPH
Standards:
Protection class IP 65, DIN EN 45545-3 class E60 (fire protection), DIN EN 61373 (shock and vibration testing), ⓘ An article of the same design was tested
Barcode:
1000-U00891-001LIPH
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 316
Surface of the module:
highly polished
Number of Possible Locking Points:
1 point
Fixing type of housing :
False
Type of actuation:
Octagon male SW 11
Mounting Positions :
False

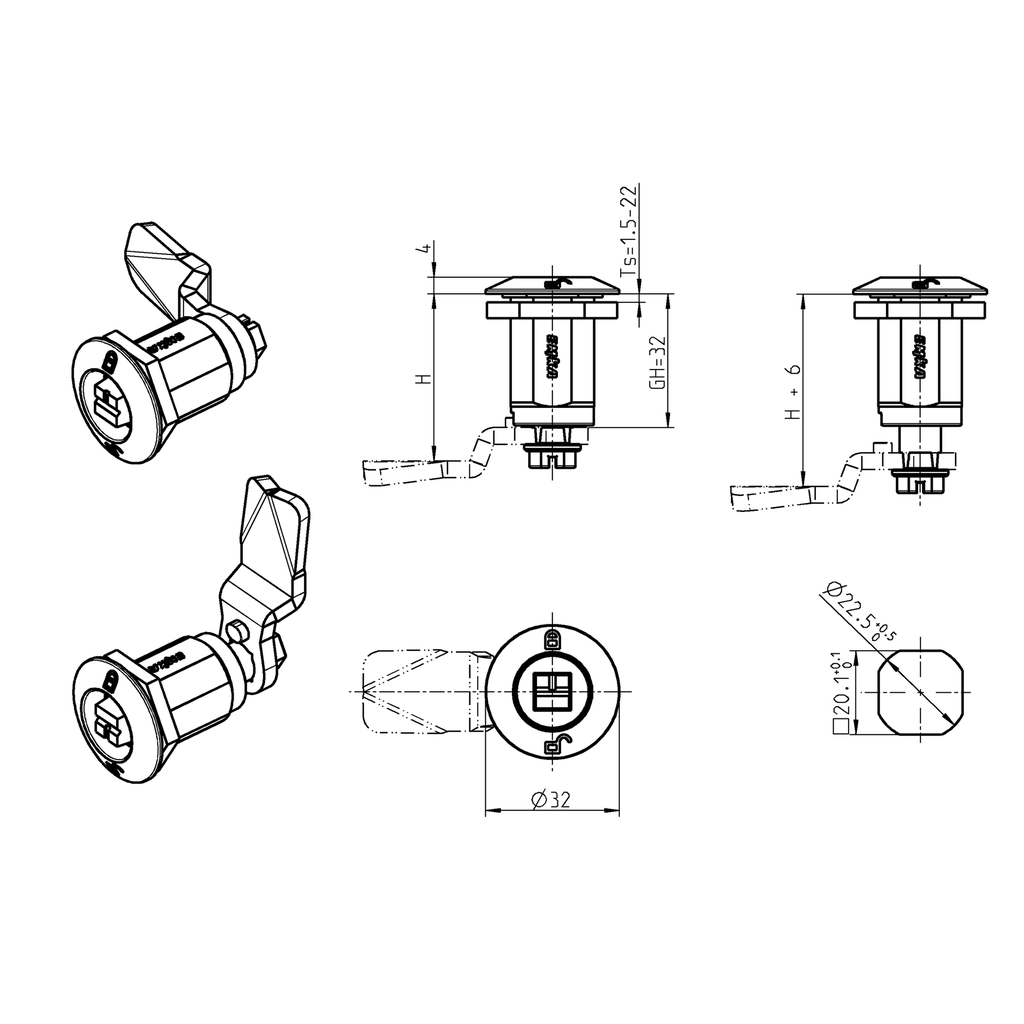

Housing Head Shape:
Round
Housing Head Size:
32 x 4 mm
GH Mass:
32 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
22 mm
Locking set:
False
Door Version :
Left
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
