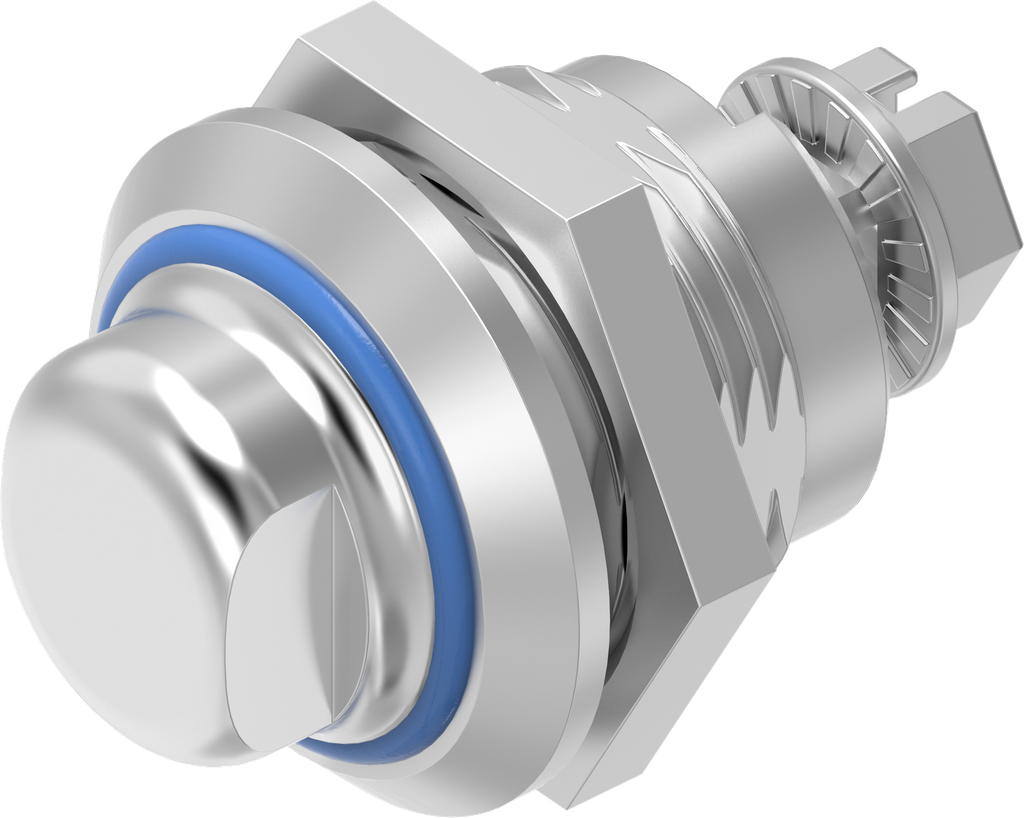

Quarter turn SW 13 for hygienic area food, Stainless steel AISI 303
Quarter turn SW 13 for hygienic area food, Stainless steel AISI 303; 1000-U838-PF
with stainless steel nut
Product Benefits:
The quarter turn for hygienic areas made of AISI 303 can be used where the quarter turn of AISI 316L is not required.Product information:
The quarter turn for hygienic areas meets hygiene standard acc. to DIN EN 1672-2 and DIN EN 14159. Application: food area
Internal Reference:
1000-U838-PF
Standards:
Protection class IP 65, DIN EN 1672-2 (hygiene), DIN EN 14159 (hygiene)
Barcode:
1000-U00838-00000PF
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 303
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Type of actuation:
Hygiene SW 13
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Foamed gasket:
Yes
GH Mass:
18 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
