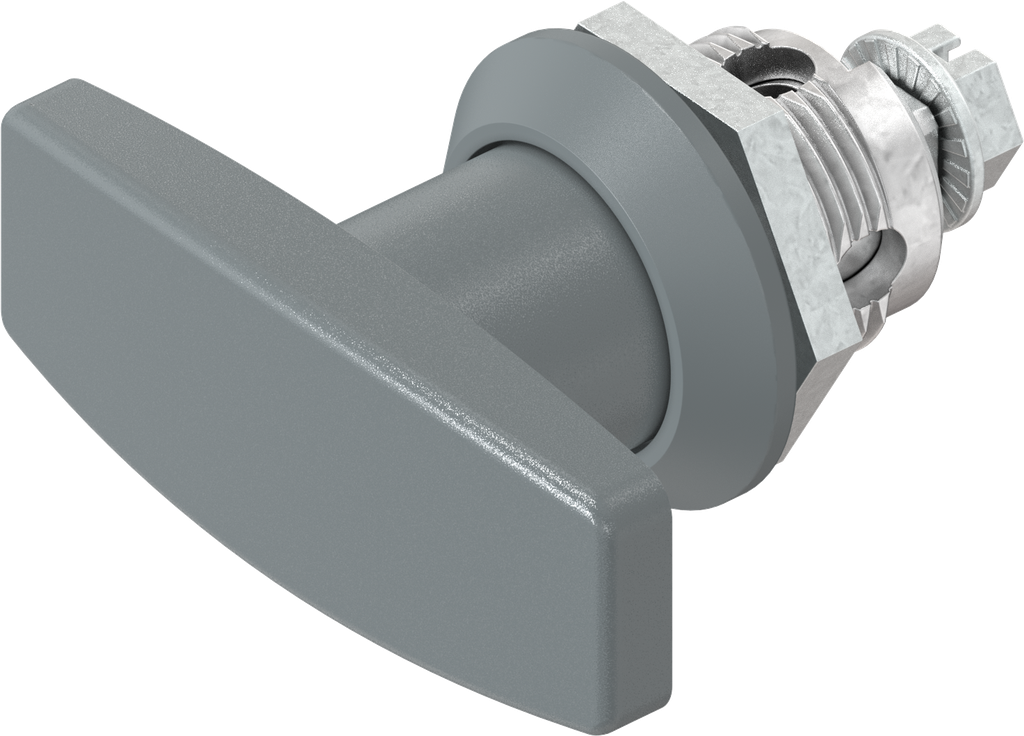

T-handle quarter turn, non-keyed, Zinc die and polyamide basalt grey; 1000-U775-BU

https://www.emka.com/products/1000-u775-bu-t-handle-quarter-turn-non-keyed-zinc-die-and-polyamide-basalt-grey-205855 https://www.emka.com/web/image/product.template/205855/image_1920?unique=11f88a7

with nut

    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right
    Internal Reference: 1000-U775-BU
    Standards: Protection class IP 65
    Barcode: 1000-U00775-00000bu
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Zinc die and polyamide
    Surface of the module: basalt grey
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Handle Art: T-handle, small
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle
