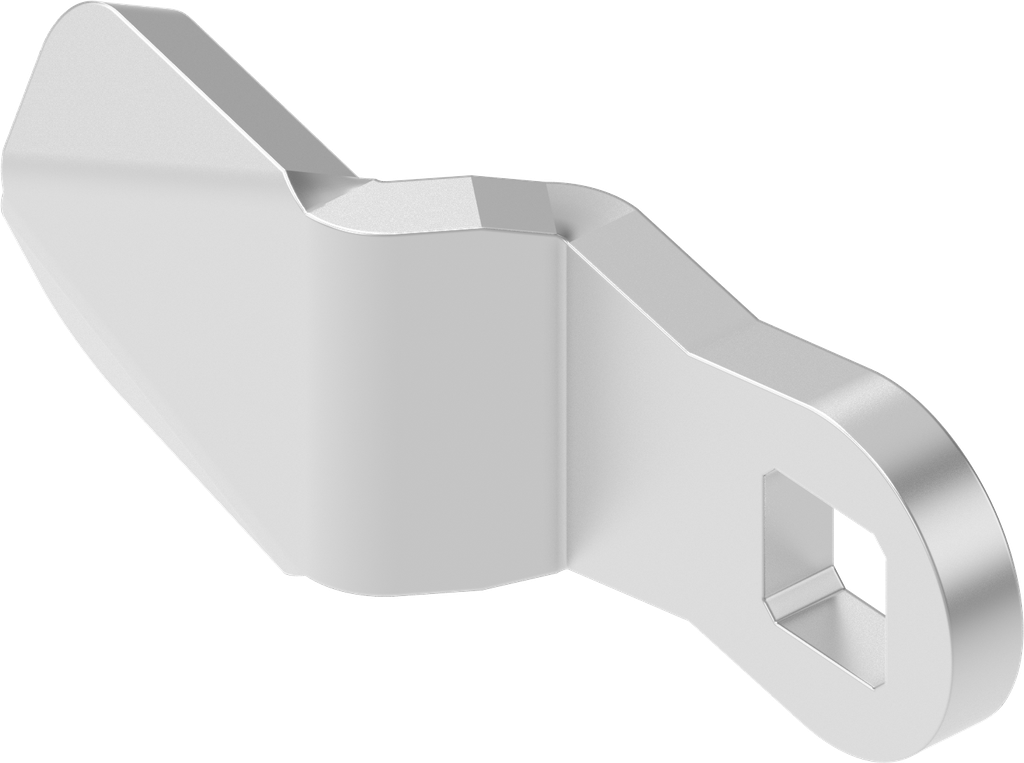

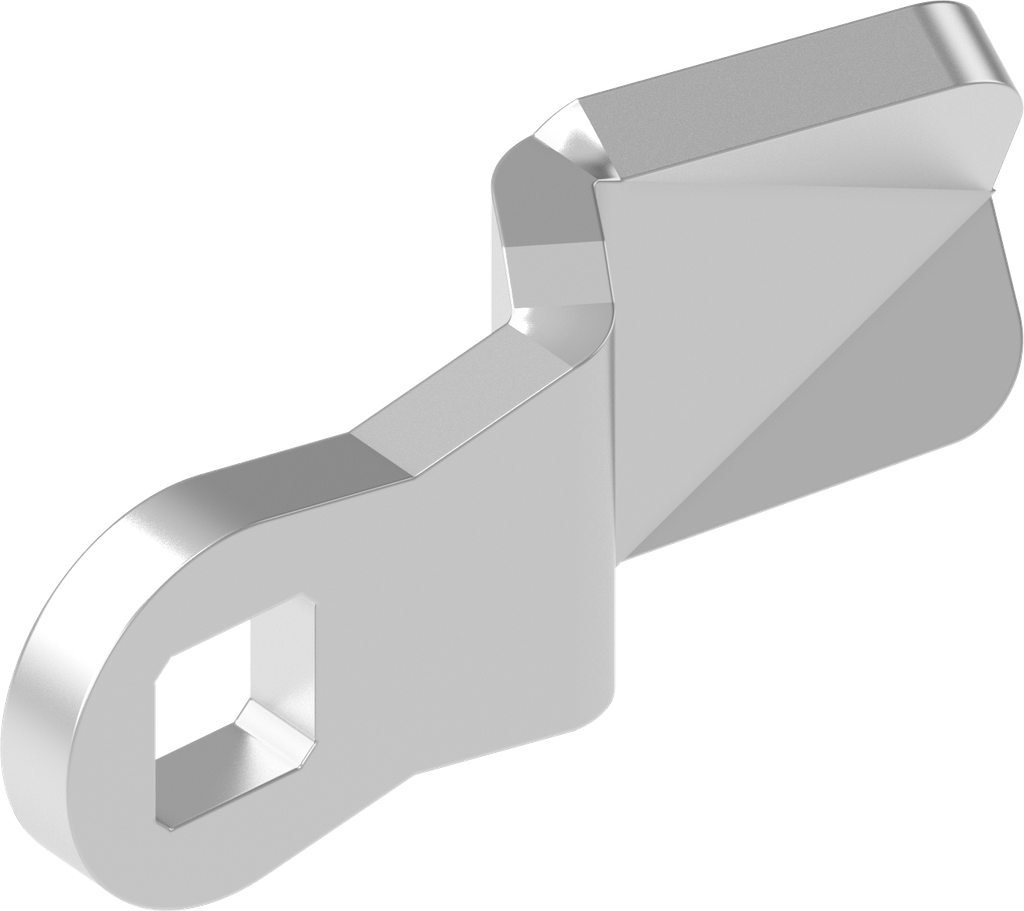

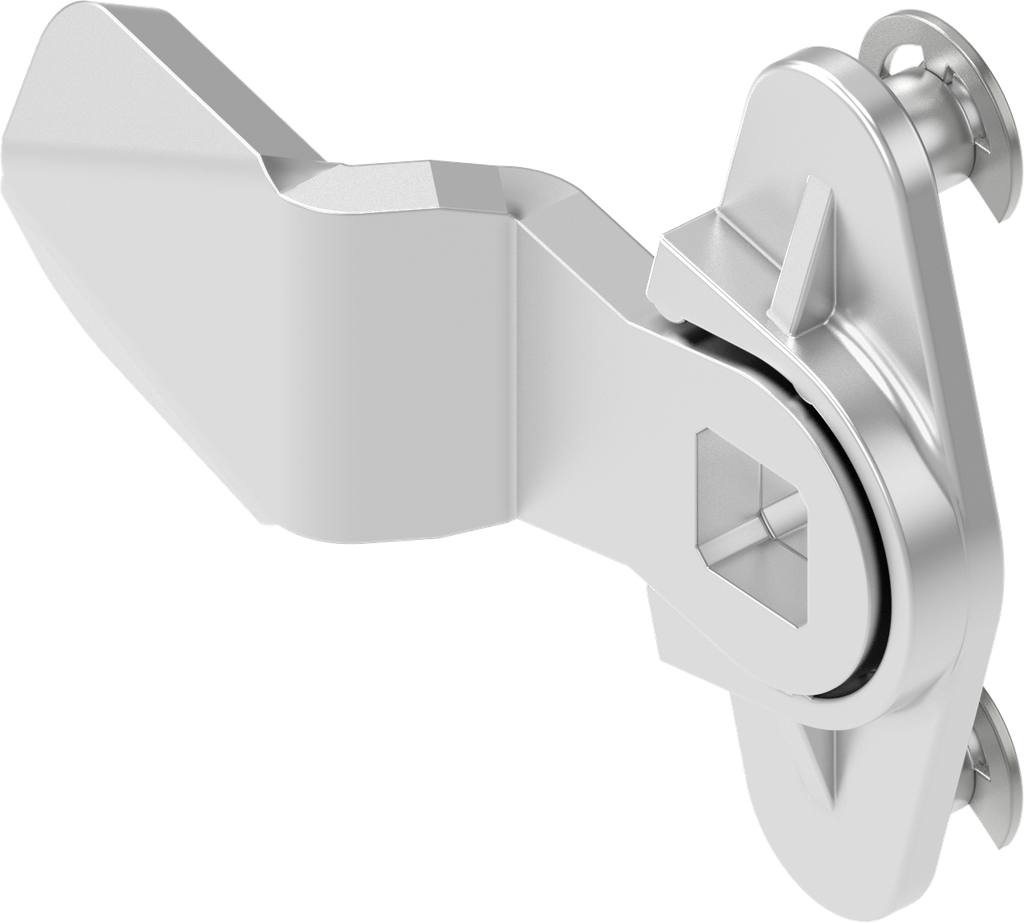

Cam without catch, Stainless steel AISI 304; 1000-223-ONPC

https://www.emka.com/products/1000-223-onpc https://www.emka.com/web/image/product.template/199993/image_1920?unique=96f462b

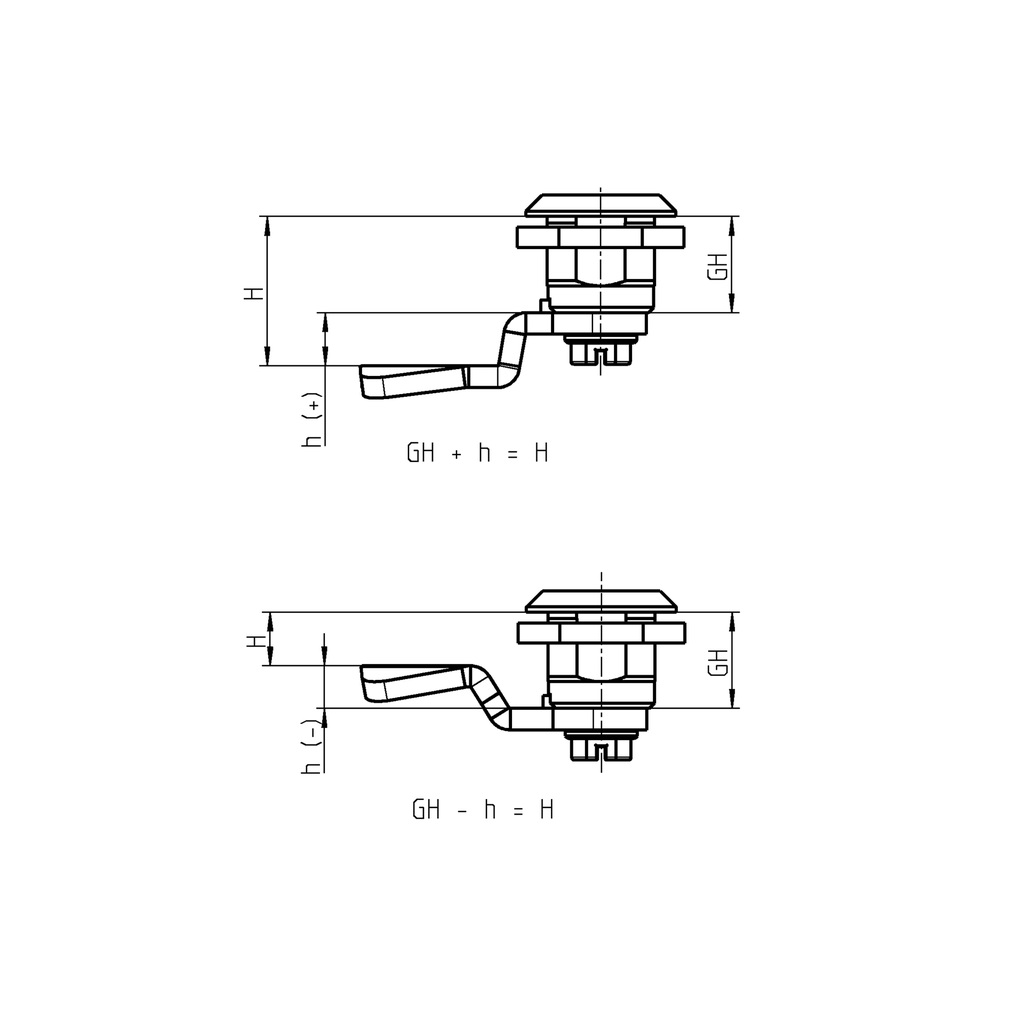

Offset h = -8 mm

    This combination does not exist.

    Inside the sealing
    Internal Reference: 1000-223-ONPC
    Barcode: 1000-000223-000ONPC
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1000
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: negative
    offset of cam: -8 mm

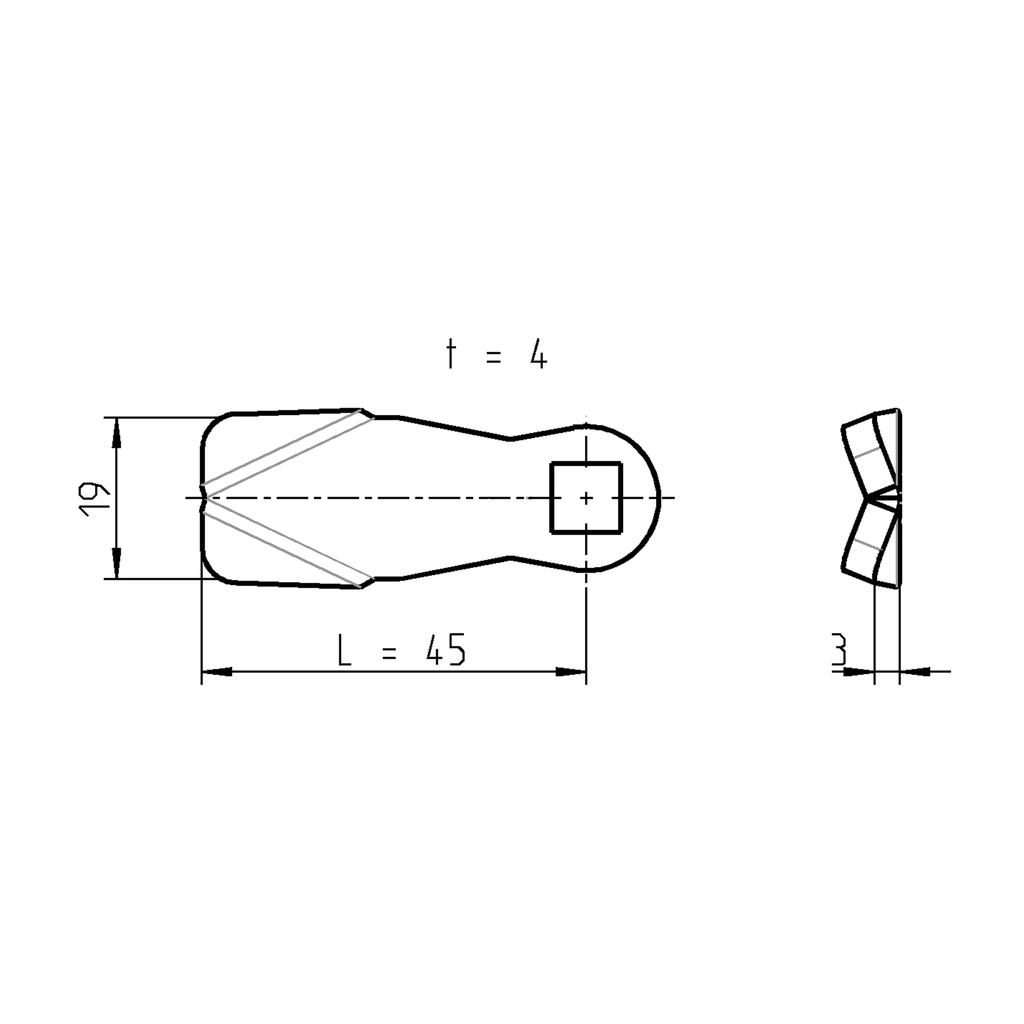

    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products

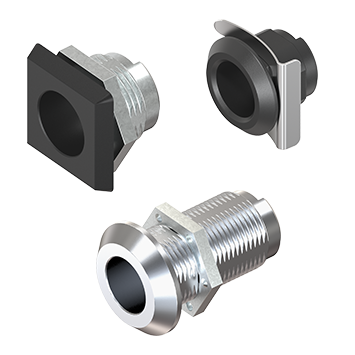

    Housing
    Locking shaft

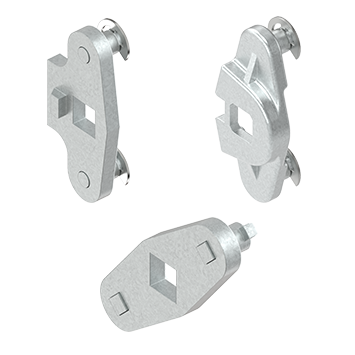

    Rod control
    Ramp
    Assembly

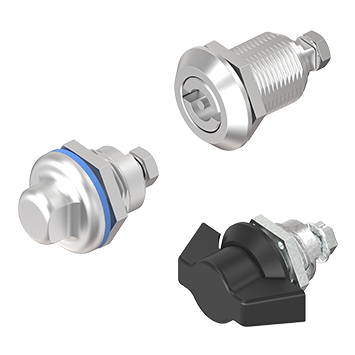

    Quarter turn
    Quarter turn accessories

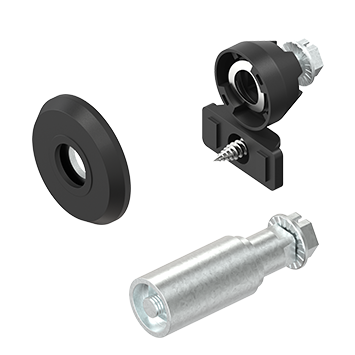

    Adapter
    Shaft
    HVACR

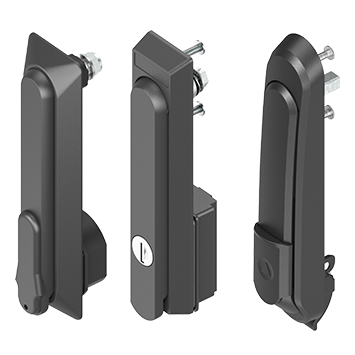

    Swinghandle, Lifthandle
    Locking point
    Bearing bush

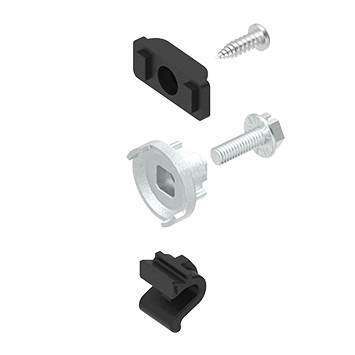

    Fixing material for swinghandle
